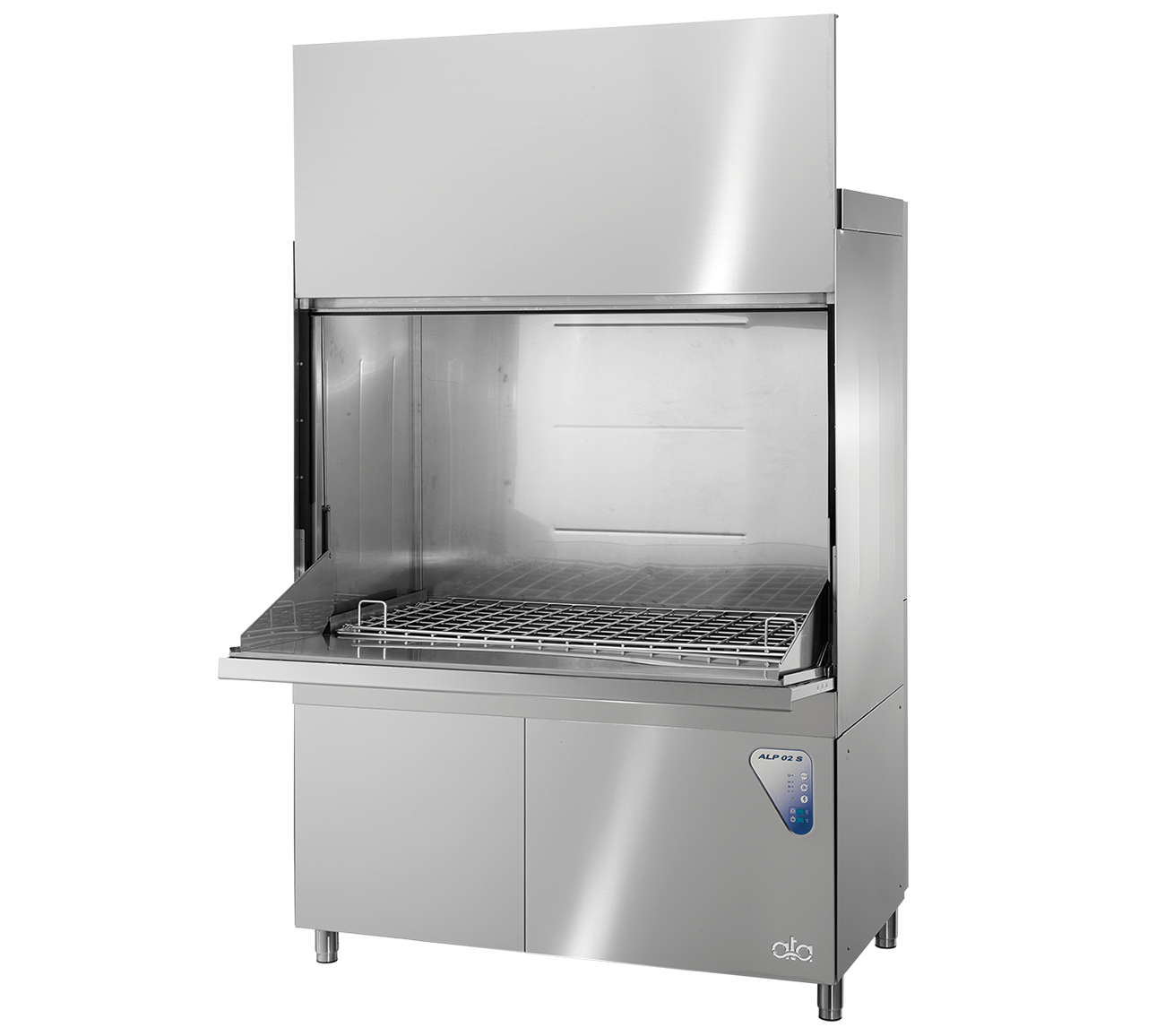

ALP02S

SOFT-TOUCH PROGRAMMABLE WARE WASHERS - RACK 600 x 1320 mm

PRODUCT DESCRIPTION


Stainless steel structure 18/10 AISI 304. Double-skinned balanced dual door. Wash tank with rounded edges and inclination, thus ensuring the complete drainage of dirty water.

Double washing system, each having 3 wash arms in the upper part and 4 wash arms in the lower part with particularly shaped jets for keeping them free from solid waste.

Three working cycles: 120 seconds, 240 seconds or continuous.

High capacity double-boiler system.

Double stainless steel surface filters in the tank for collecting solid waste.

Low tension (24V) soft-touch control panel. Temperature thermometer.

Possibility to change the cycle parameters thanks to palmtop with simple logic. Possibility to program the working cycle.

The programmable THERMOLOCK system ensures that the rinsing cycle starts only at the temperature of 85°C: the ideal temperature for strongly reducing the bacterial load.

Steam is carried out through a chimney.

The built-in W.A.G.P. system ensures excellent rinsing and prevents dirty water from flowing back to the main water system.

Rack: 600 x 1320 mm. Possibility to wash baking trays and other items up to 800 mm.

The lower wash pump is more powerful than the upper wash pump and it has a delayed action, so that items to be washed do not move from their position when the washing cycle starts.

Standard equipped with built-in rinse aid dispenser for the best drying results. Standard equipped with built-in connection for detergent dispenser.

Wide range of options available on demand. Winding shower available on demand.

Standard equipped with a stainless steel basket.

TECHNICAL SPECIFICATIONS


Width: 1450 mm
Depth: 865 mm
Height: 2100 mm
Volume: 2.62 m³
Rack dimensions: 600x1320 mm
Useful height: 850
Working cycles: 120-240 + ∞ sec
Electrical power: 18.60 kW
Electric power: 230 V/ 3 – 400 V / 3+N/ 50-60 Hz
Racks/Hour: 30-15
WAGP: Standard
  • Image
    A14286
    BUILT-IN ROLL-UP SHOWER FORALP01S/01GS/02S/02GS
  • Image
    A4249
    PROBE FOR LACK OF DETERGENT
  • Image
    A9098E
    BUILT-IN DETERGENT DISPENSERFOR ELECTRONIC DISHWASHERS
  • Image
    5831
    PALMTOP SOFT-TOUCH DISHWASHERS
