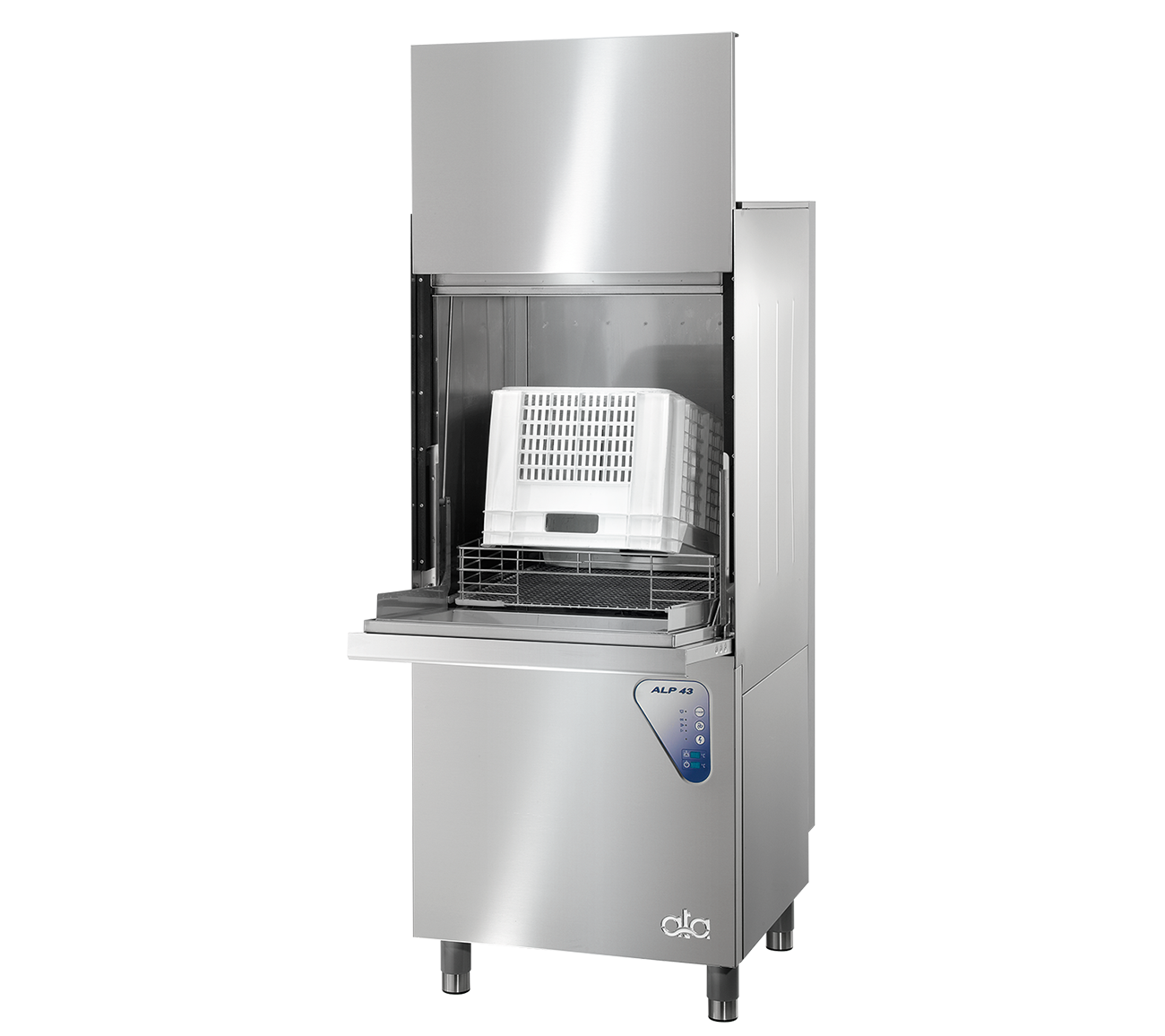

ALP43
SOFT-TOUCH PROGRAMMABLE WARE WASHERS - RACK 570 x 570 mm
PRODUCT DESCRIPTION
Stainless steel structure 18/10 AISI 304. Double-skinned balanced dual door. Wash tank with rounded edges and inclination, thus ensuring the complete drainage of dirty water.
Washing system with 3 wash arms in the lower part and a rotating wash arm in the upper part with particularly shaped jets for keeping them free from solid waste.
Three working cycles: 120 seconds, 240 seconds or continuous.
High capacity double-boiler system.
Double stainless steel surface filters in the tank for collecting solid waste.
Low tension (24V) soft-touch control panel. Temperature thermometer.
Possibility to change the cycle parameters thanks to palmtop with simple logic. Possibility to program the working cycle.
The programmable THERMOLOCK system ensures that the rinsing cycle starts only at the temperature of 85°C: the ideal temperature for strongly reducing the bacterial load.
Steam is carried out through a chimney.
570 x 570 mm basket. Possibility to wash baking trays and other items up to 600 mm.
Standard equipped with built-in rinse aid dispenser for the best drying results. Standard equipped with built-in connection for detergent dispenser.
Wide range of options available on demand. A special concave door suitable for washing a basket 600 x 400 mm available on demand.
Standard equipped with a stainless steel plain basket.
TECHNICAL SPECIFICATIONS
Depth: 750 mm
Height: 1710 mm
Volume: 0.88 m³
Rack dimensions: 570x570 mm
Working cycles: 120-240 + ∞ sec
Electrical power: 9.00 kW
Electric power: 230 V/ 3 – 400 V / 3+N/ 50-60 Hz
Racks/Hour: 30-15
