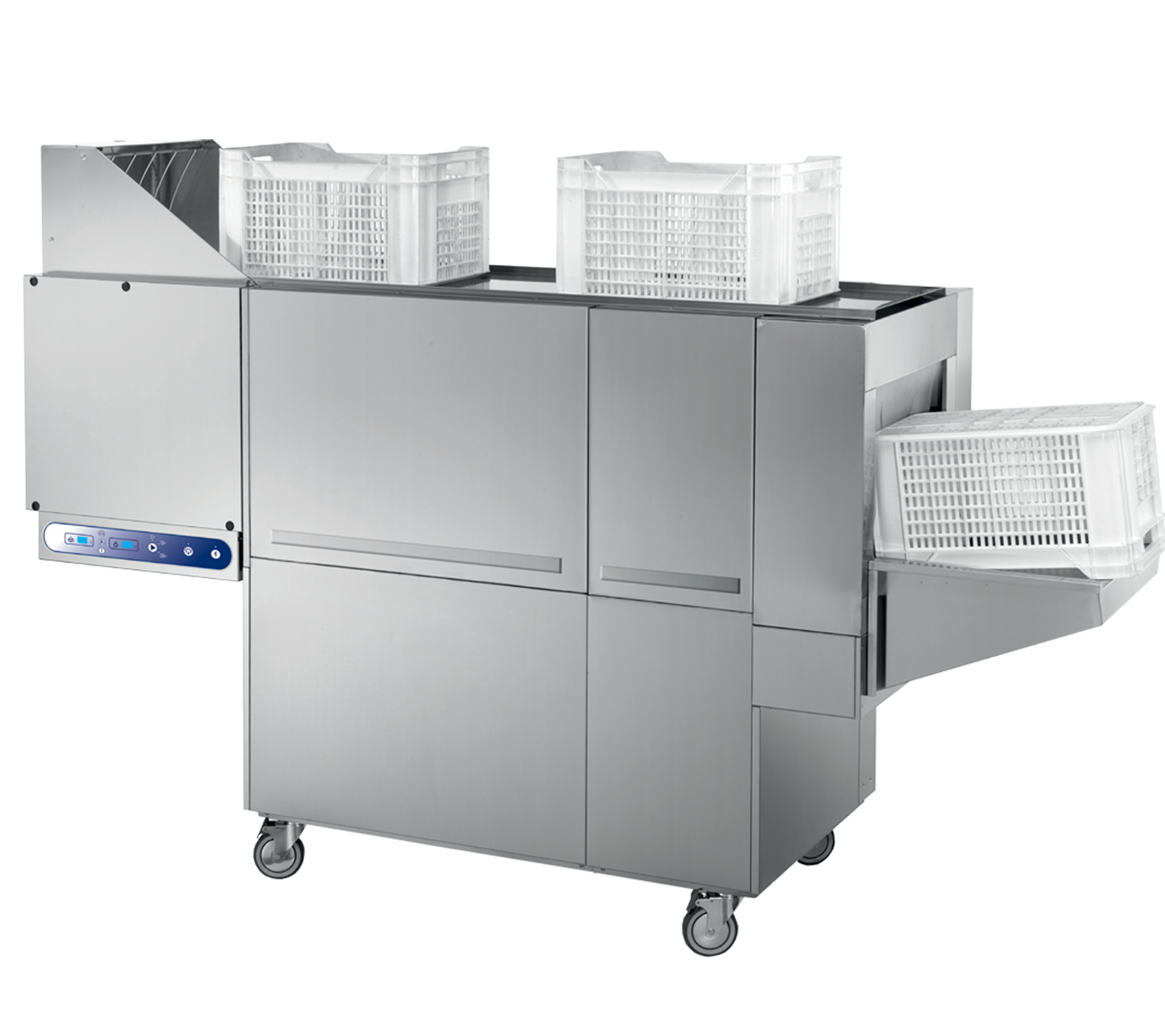

ALC100

RACK WASHER WITH OVERTURNING SYSTEM

PRODUCT DESCRIPTION


Stainless steel structure 18/10 AISI 304. Double-skinned counter-balanced door.

Three-way washing system: from the upper part, from the lower part and from the sides.

One wash area and a double rinse area with double-boiler system.

Three-speed rack movement with a maximum washing capacity of 100 racks/hour.

Stainless steel surface filters in the tank with an easily removable drawer for collecting solid waste.

Wash and rinse temperature thermometer.

Compact geared motor with integrated clutch. Water saving system while rinsing.

Possibility to wash racks different in their dimensions thanks to its central rack conveyor system.

Little space required thanks to the overturning system. Easy-to-move thanks to its wheels.

To load and unload racks are the only things the user has to do.

Built-in detergent dispenser and rinse aid dispenser available on demand.

Optional on demand: connection to cold water with a total power of 36,3 kW.

TECHNICAL SPECIFICATIONS


Width: 2720 mm
Depth: 800 mm
Height: 1820 mm
Volume: 3.96 m³
Rack dimensions: 430x680x500 mm
Useful height: 500
Electrical power: 27.30 kW
Electric power: 230 V/ 3 – 400 V / 3+N/ 50-60 Hz
Racks/Hour: 60-80-100
  • Image
    A12139
    BUILT-IN RINSE AID DISPENSER
  • Image
    A12200
    BUILT-IN DETERGENT DISPENSER
  • Image
    5831
    PALMTOP SOFT-TOUCH DISHWASHERS
