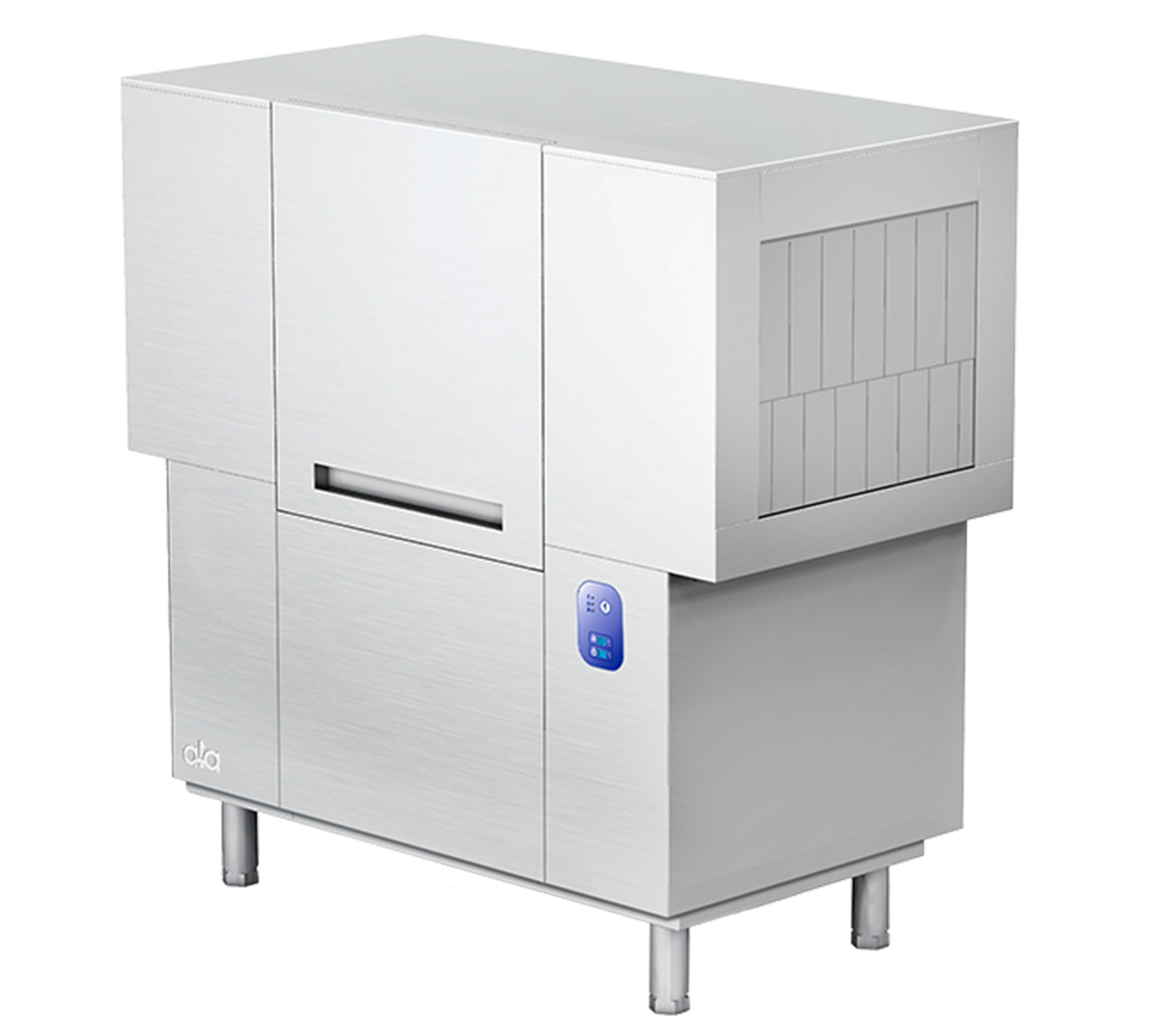

ATR1800

RACK CONVEYOR DISHWASHER 1800 PLATES/HOUR

PRODUCT DESCRIPTION


Stainless steel structure 18/10 AISI 304. Sturdy counter-balanced door. Wash tank with rounded edges and inclination, thus ensuring the complete drainage of dirty water.

Stainless steel upper and lower wash and rinse arms that can be easily taken out for cleaning.

High capacity double-boiler system.

Double stainless steel surface filters in the tank with an easily removable basket for collecting solid waste.

Ergonomic control panel in order to make the temperatures and the different working steps easily recognisable.

The built-in W.A.G.P. system ensures excellent rinsing and prevents dirty water from flowing back to the main water system.

Wide range of accessories and options available on demand: drying tunnel (AZ 75), splash guard (PC 75), rinse aid dispenser and detergent dispenser.

Entry and exit tables available on demand.

Standard equipped with three racks for plates and a rack for tableware.

IPX5 protection

Option on demand: connection to cold water for a total power of 30,3 kW.

TECHNICAL SPECIFICATIONS


Width: 1400 mm
Depth: 720 mm
Height: 1375 mm
Volume: 1.18 m³
Rack dimensions: 500x500 mm
Useful height: 430
Electrical power: 20.10 kW
Electric power: 230 V/ 3 – 400 V / 3+N/ 50-60 Hz
Racks/Hour: 100
Dishes/Hour: 1800
WAGP: Standard
  • Image
    A13349
    BUILT-IN RINSE AID DISPENSERATR75/1500/1800
  • Image
    A13398
    BUILT-IN DETERGENT DISPENSERATR75/1500/1800
