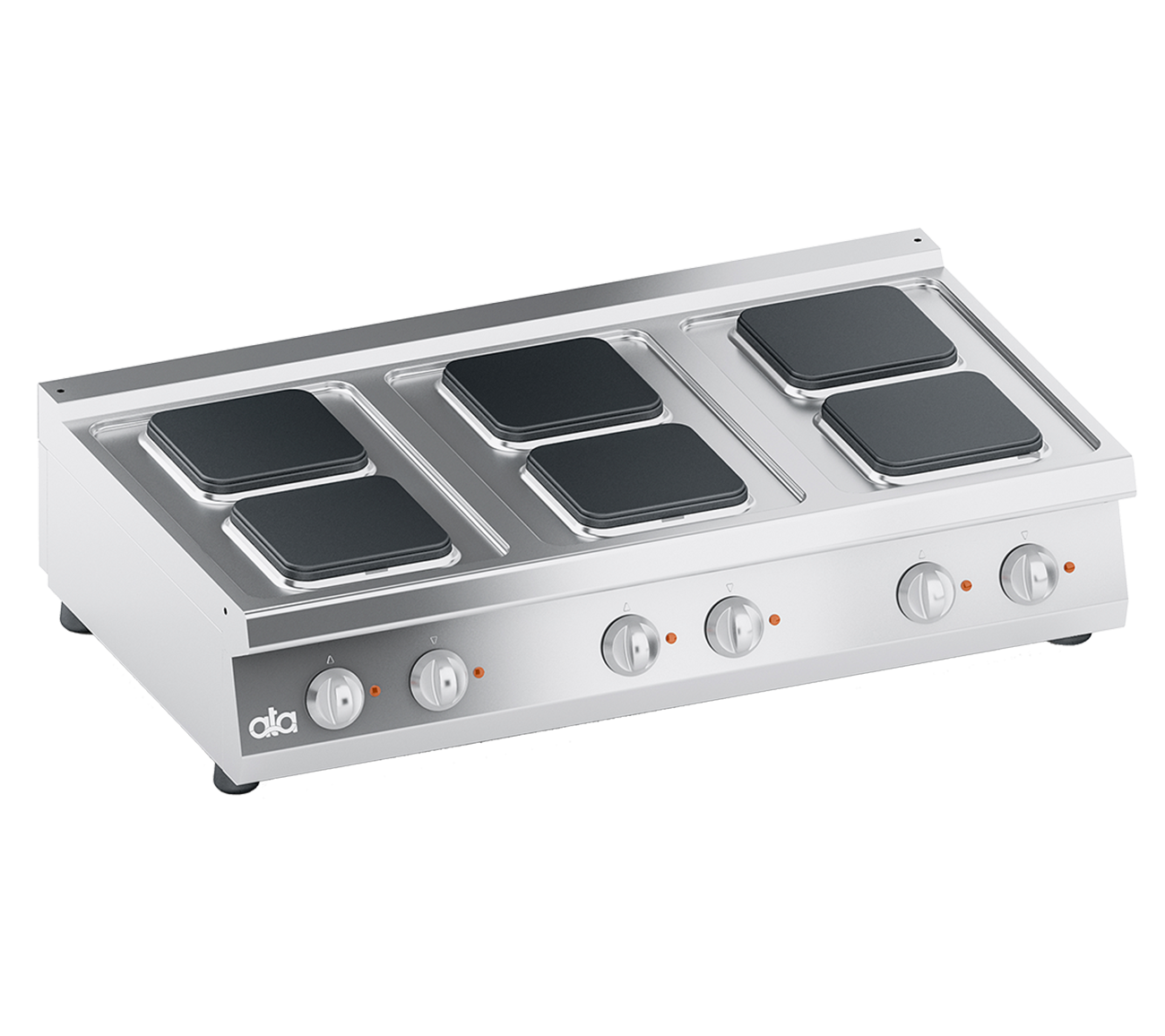

K7ECU15TTQ
TOP ELECTRIC RANGE 6 SQUARE PLATES
PRODUCT DESCRIPTION
Stainless steel frame. Athermic thermoset plastic knobs with useful screen printed edges.
Heating obtained through cast iron square electric plates. Heating elements fixed on the plate bottom, embedded in a layer of insulating material. Each hotplate is provided with a selector, which enables the variation of the heat output from maximum to minimum in seven positions. Safety ensured by a temperature limit-switch situated inside the hotplate.
AISI 304 moulded work surface presenting a reverse drawing for perfect lodging the electric plates, easy cleaning and avoiding liquid damaging electric parts. Stainless steel AISI 304 front panel.
Laser-cut work top finishing for "head-to-head" matching and binding fastening.
Accessories available on demand.
TECHNICAL SPECIFICATIONS
Depth: 700 mm
Height: 265 mm
Volume: 0.54 m³
Electrical power: 15.60 kW
-
K00088
CONNECTING KIT S700/S600 -
K7AFP
BUILT-IN POT HOLDER FOR ELECT.RANGES
