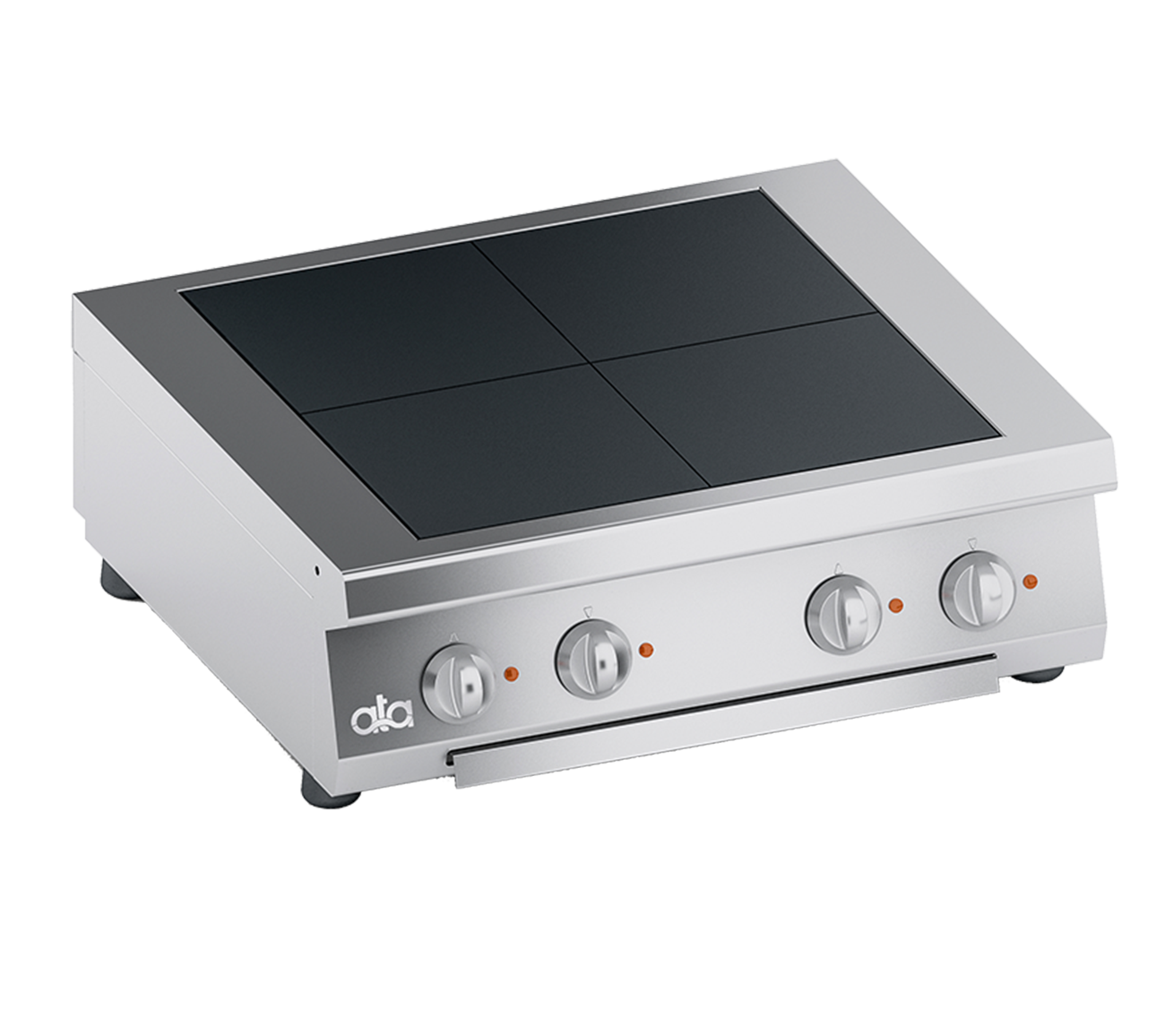

K7ERU10TT

TOP ELECTRIC RANGE 4 SQUARE PLATES

PRODUCT DESCRIPTION


Stainless steel frame. Athermic thermoset plastic knobs with useful screen printed edges.

Heating obtained through radiating cast iron square electric plates. Each electric plate has three heating elements, embedded in a layer of insulating material. Each hotplate is provided with a selector, which enables the variation of the heat output from maximum to minimum in seven positions. Safety ensured by a temperature limit-switch situated inside the hotplate.

AISI 304 work surface for perfect lodging the electric plates, easy cleaning and avoiding liquid damaging electric parts. Stainless steel AISI 304 front panel.

The electric hotplates are on the same level as the work surface: the result is a smooth surface that makes moving pots easier.

Standard equipped with a dripping tray for collecting liquids.

Laser-cut work top finishing for "head-to-head" matching and binding fastening.

Accessories available on demand

TECHNICAL SPECIFICATIONS


Width: 800 mm
Depth: 700 mm
Height: 265 mm
Weight: 73 kg
Volume: 0.38 m³
Electrical power: 10.00 kW
  • Image
    K00088
    CONNECTING KIT S700/S600
