K4GCU15VVS

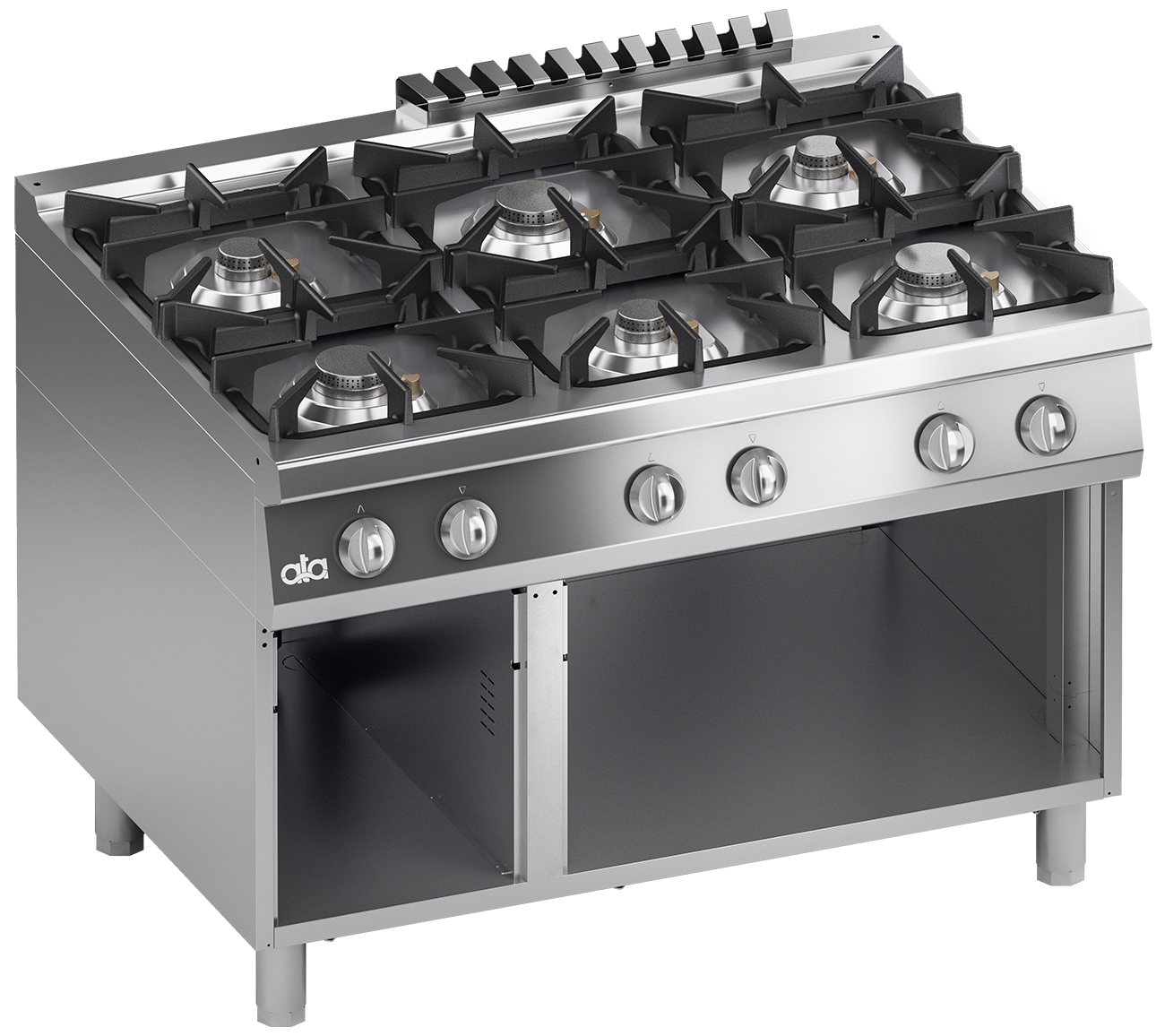

GAS RANGE 6 BURNERS + OPEN CABINET - SOLUTION LINE

PRODUCT DESCRIPTION


Stainless steel frame. Athermic thermoset plastic knobs with useful screen printed edges.

Heating by means of cast-iron, sealed, stabilised flame and superimposed double crown burners with different power ratings (max. 8.5 kW and 10.7 kW).

Each burner provided with a safety gas cock, which enables the output to be regulated from maximum to minimum. Safety ensured by a thermocouple kept active by the pilot burner flame.

Surface grids made of alkali-, acid- and fire-resistant RAAF matt enamelled cast iron.

Surface grids placed on moulded surfaces with rounded edges and water-tight burners for easy cleaning.

Worktop drain through overflow available on request to speed up cleaning operations.

Moulded AISI 304 stainless steel worktop with rounded edges for easy cleaning. Stainless steel front, side and back panels.

Laser-cut work top finishing for "head-to-head" matching and binding fastening.

Tested with natural gas or LPG, according to the user's needs.

Height-adjustable stainless steel legs.

Accessories available on demand.

TECHNICAL SPECIFICATIONS


Width: 1200 mm
Depth: 900 mm
Height: 850 mm
Weight: 114 kg
Volume: 1.43 m³
Gas power: 57.60 kW
  • Image
    K00089
    CONNECTING KIT
  • Image
    K25017
    SMOOTH PLATE S900 AND S110
  • Image
    K25018
    GROOVED PLATE S900 AND S110
  • Image
    K4ASC15
    WORKING TOP DRAIN FOR K4GCUP15
  • Image
    K7PORTA
    DOOR
