K4GCU15FMS

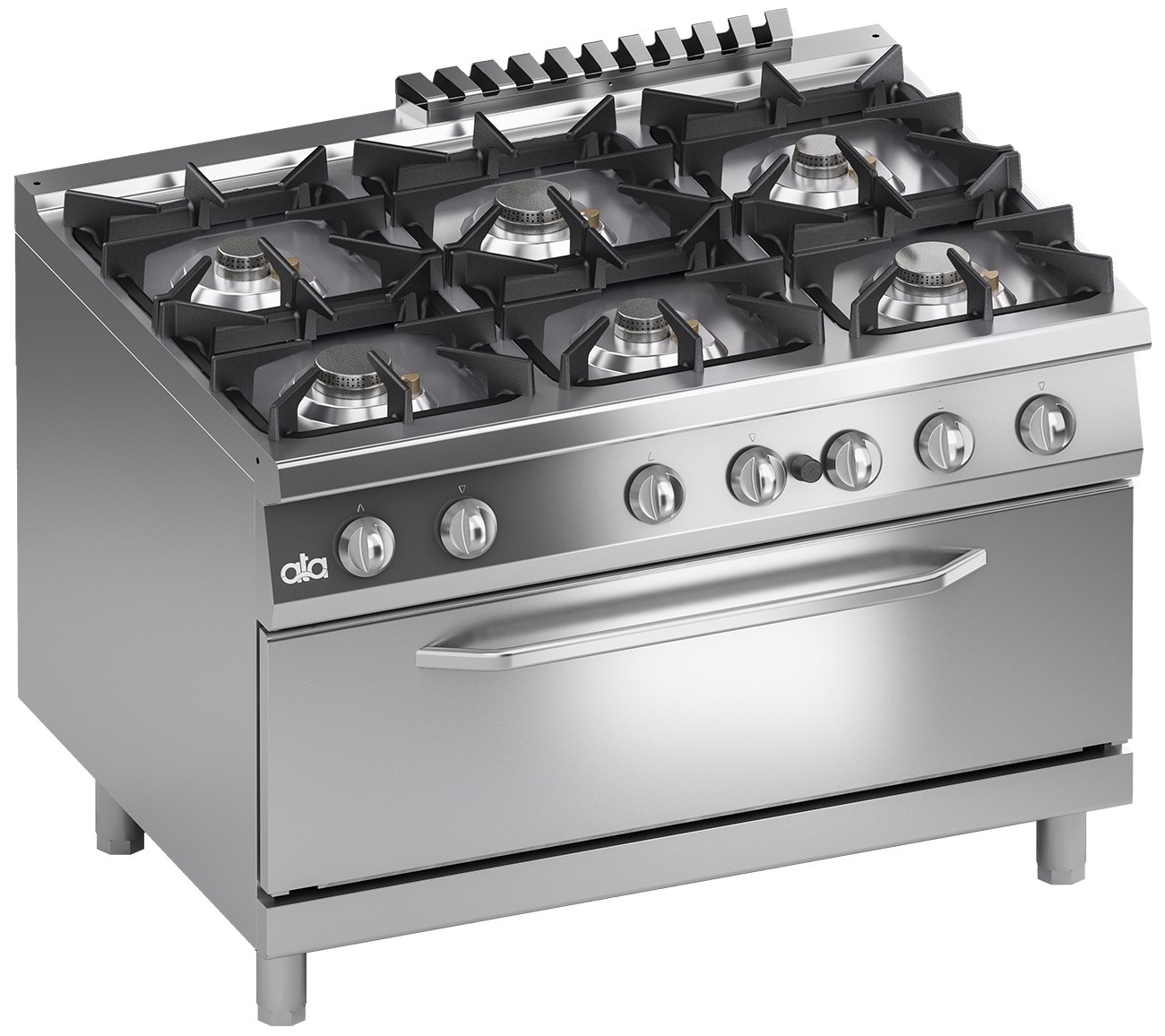

GAS RANGE 6 BURNERS + MAXI GAS OVEN 105 x 53 cm - SOLUTION LINE

PRODUCT DESCRIPTION


Stainless steel frame. Athermic thermoset plastic knobs with useful screen printed edges. Double-skinned moulded oven door and heavy-duty handle.

Heating by means of cast-iron, sealed, stabilised flame and superimposed double crown burners with different power ratings (max. 8.5 kW and 10.7 kW).

Each burner provided with a safety gas cock, which enables the output to be regulated from maximum to minimum. Safety ensured by a thermocouple kept active by the burner flame.

Surface grids made of alkali-, acid- and fire-resistant RAAF matt enamelled cast iron.

Surface grids placed on moulded surfaces with rounded edges and water-tight burners for easy cleaning.

Worktop drain through overflow available on request to speed up cleaning operations.

MAXI gas oven (105 x 53 cm), suitable for holding 3 baking pans 1/1 GN. Oven stainless steel removable grill. Oven floor made of made of a thick steel sheet strengthened by a series of ribs.

Insulation of the cooking chamber and of the oven door ensured by a layer of high temperature resistant ceramic fibre.

Quick temperature rise and heat retention obtained through a high performance stabilized flame burner with integrated diffuser, suitable to work at high temperatures. The oven burner is equipped with a thermostatic gas valve which allows to adjust the temperature up to 300°C. Safety ensured by a thermocouple kept active by the burner flame.

Moulded AISI 304 stainless steel worktop with rounded edges for easy cleaning. Stainless steel front, side and back panels.

Laser-cut work top finishing for "head-to-head" matching and binding fastening.

Tested with natural gas or LPG, according to the user's needs.

Height-adjustable stainless steel legs.

Accessories available on demand.

TECHNICAL SPECIFICATIONS


Width: 1200 mm
Depth: 900 mm
Height: 850 mm
Weight: 172 kg
Volume: 1.43 m³
Gas power: 65.60 kW
  • Image
    K00089
    CONNECTING KIT
  • Image
    K25017
    SMOOTH PLATE S900 AND S110
  • Image
    K25018
    GROOVED PLATE S900 AND S110
  • Image
    K4ASC15
    WORKING TOP DRAIN FOR K4GCUP15
