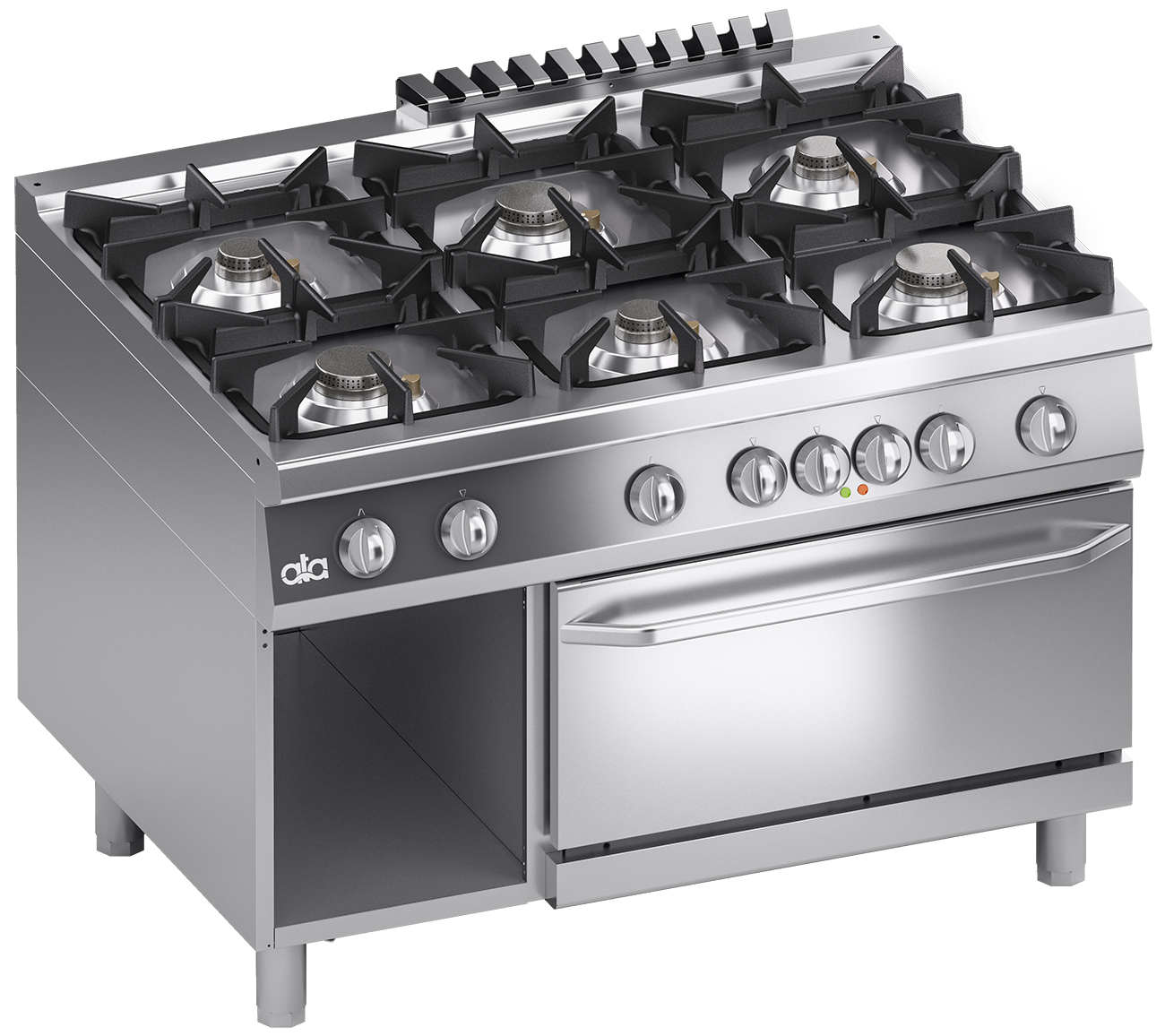

K4MCU15FFS
GAS RANGE 6 BURNERS + ELECTRIC OVEN 2/1 GN + OPEN CABINET - SOLUTION LINE
PRODUCT DESCRIPTION
Stainless steel frame. Athermic thermoset plastic knobs with useful screen printed edges. Double-skinned moulded oven door and heavy-duty handle.
Heating by means of cast-iron, sealed, stabilised flame and superimposed double crown burners with different power ratings (max. 8.5 kW and 10.7 kW).
Each burner provided with a safety gas cock, which enables the output to be regulated from maximum to minimum. Safety ensured by a thermocouple kept active by the burner flame.
Surface grids made of alkali-, acid- and fire-resistant RAAF matt enamelled cast iron.
Surface grids placed on moulded surfaces with rounded edges and water-tight burners for easy cleaning.
Worktop drain through overflow available on request to speed up cleaning operations.
Electric static oven 2/1 GN and open cabinet. Stainless steel AISI 430 oven cooking chamber and thick stainless steel oven floor. Stainless steel removable oven grill.
Insulation of the cooking chamber and of the oven door ensured by a layer of high temperature resistant ceramic fibre.
Heating obtained through heating elements placed under the bottom and on the top of the cooking chamber. Equipped with a thermostat that adjusts the temperature between 90°C and 300°C.
Moulded AISI 304 stainless steel worktop with rounded edges for easy cleaning. Stainless steel front, side and back panels.
Laser-cut work top finishing for "head-to-head" matching and binding fastening.
Tested with natural gas or LPG, according to the user's needs.
Height-adjustable stainless steel legs.
Accessories available on demand.
TECHNICAL SPECIFICATIONS
Depth: 900 mm
Height: 850 mm
Weight: 142 kg
Electrical power: 5.40 kW
Gas power: 57.60 kW
