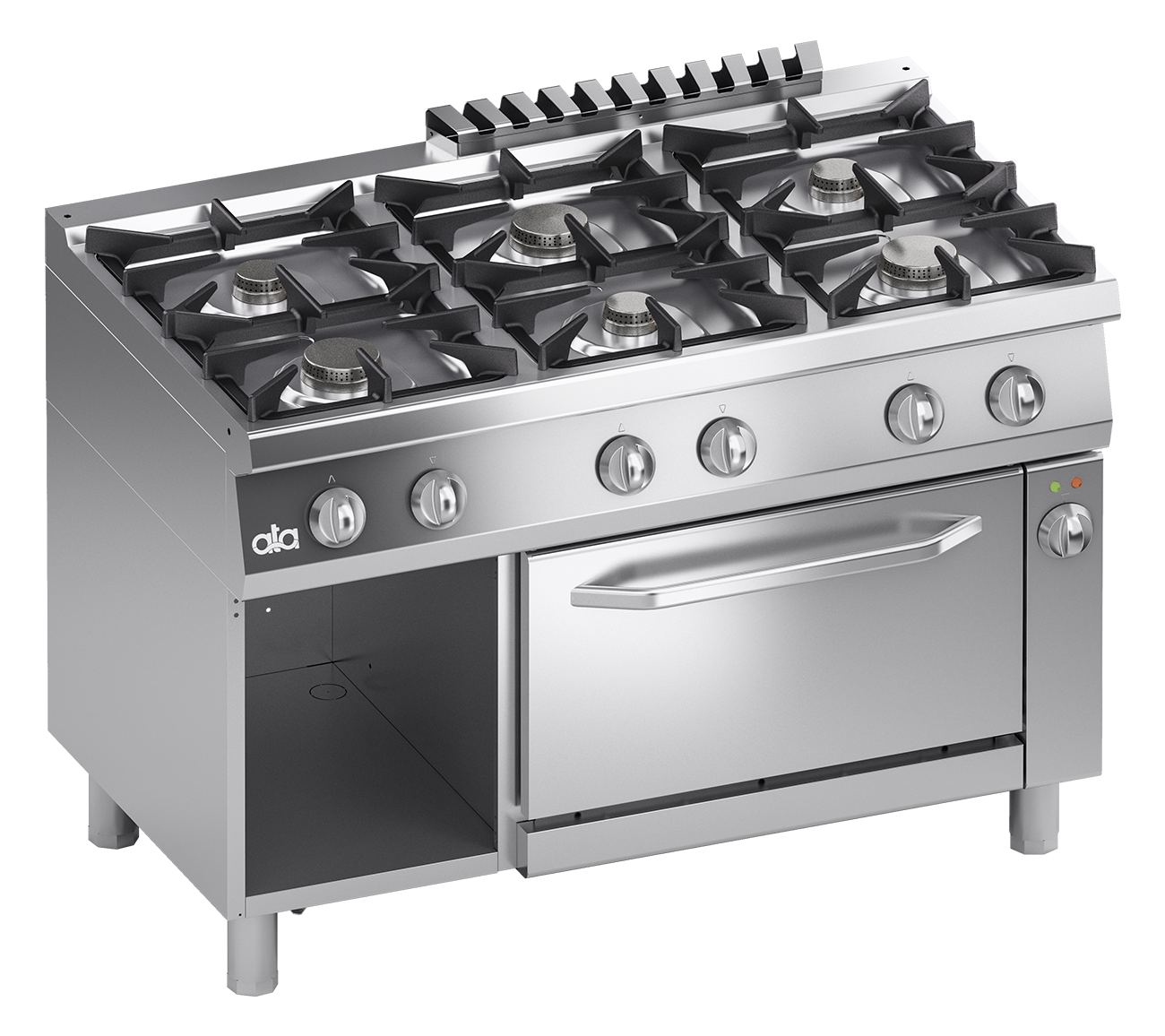

K7MCUS15F1
GAS RANGE 6 BURNERS + ELECTRIC OVEN 1/1 GN - SOLUTION LINE
PRODUCT DESCRIPTION
Stainless steel frame. Double-skinned moulded oven door and heavy-duty handle. Athermic thermoset plastic knobs.
Heating by means of cast-iron, sealed, stabilised flame and superimposed double crown burners with different power ratings (max. 6.5 kW and 7.7 kW).
Each burner provided with a safety gas cock, which enables the output to be regulated from maximum to minimum. Safety ensured by a thermocouple kept active by the burner flame.
Surface grids made of alkali, acid and fire resistant matt RAAF enamelled cast iron.
Surface grids placed on moulded surfaces with rounded edges and burners hermetically sealed at the top for easy cleaning.
Electric static oven 1/1 GN. Oven stainless steel removable grill. Oven floor made of made of a thick steel sheet strengthened by a series of ribs.
Insulation of the cooking chamber and of the oven door ensured by a layer of high temperature resistant ceramic fibre.
Heating obtained by special stainless steel heating elements resistant to high temperatures that are placed under the bottom and on the top of the cooking chamber.
Equipped with a thermostat that adjusts the temperature between 120°C and 300°C. Safety thermostat with manual reset against overheating.
Laser-cut work top finishing for "head-to-head" matching and binding fastening.
Height-adjustable stainless steel legs.
Tested with natural gas or LPG, according to the user's needs.
Accessories available on demand.
TECHNICAL SPECIFICATIONS
Depth: 700 mm
Height: 850 mm
Weight: 120 kg
Electrical power: 3.00 kW
Gas power: 42.60 kW
