K7GCUP10FFP

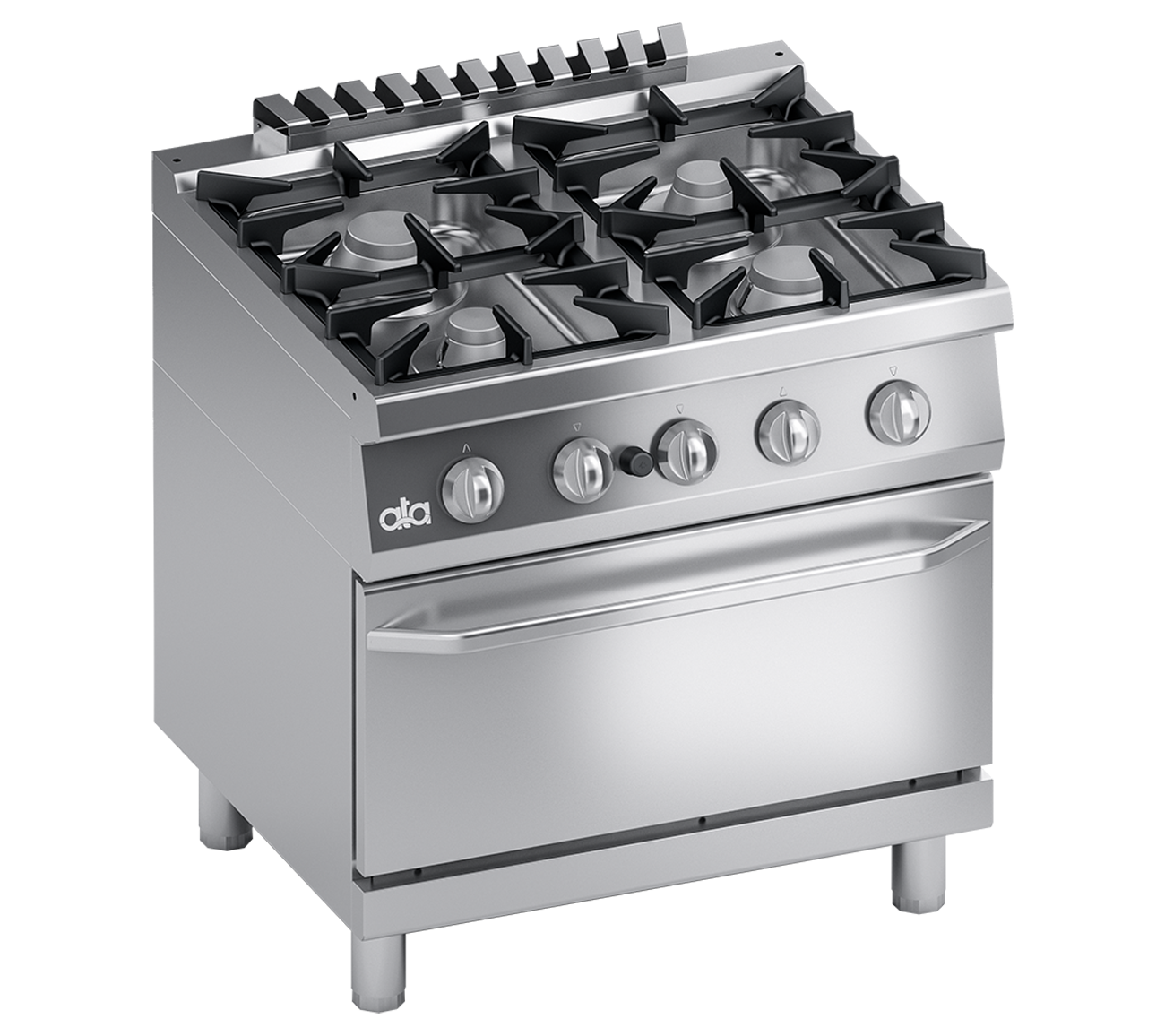

GAS RANGE 4 BURNERS + GAS OVEN 2/1 GN - PERFORMANCE LINE
PRODUCT DESCRIPTION
Stainless steel frame. Double-skinned moulded oven door and heavy-duty handle. Athermic thermoset plastic knobs.
Heating obtained through watertight, superposed crown stabilized flame burners with different power ratings (8,5 kw).
Each burner provided with a safety gas cock, which enables the output to be regulated from maximum to minimum. Safety ensured by a thermocouple kept active by the flame of the pilot burner.
Surface grids and burners made of alkali, acid and fire resistant matt RAAF enamelled cast iron.
Surface grids placed on moulded surfaces with rounded edges for easy cleaning and avoiding liquid overflowing.
Stainless steel moulded trays with rounded edges, placed under the burners for easy cleaning.
Gas oven 2/1 GN. Oven stainless steel removable grill. Oven floor made of made of a thick steel sheet strengthened by a series of ribs.
Insulation of the cooking chamber and of the oven door ensured by a layer of high temperature resistant ceramic fibre.
Quick temperature rise and heat retention obtained through a stabilized flame burner with high performance integrated diffuser, suitable to work at high temperatures.
The oven burner is equipped with a thermostatic gas valve which allows to adjust the temperature up to 300°C. Safety ensured by a thermocouple kept active by the burner flame.
Laser-cut work top finishing for "head-to-head" matching and binding fastening.
Height-adjustable stainless steel legs.
Tested with natural gas or LPG, according to the user's needs.
Accessories available on demand.
TECHNICAL SPECIFICATIONS
Depth: 700 mm
Height: 850 mm
Volume: 0.80 m³
Gas power: 41.50 kW
