K4GFBP10VVL

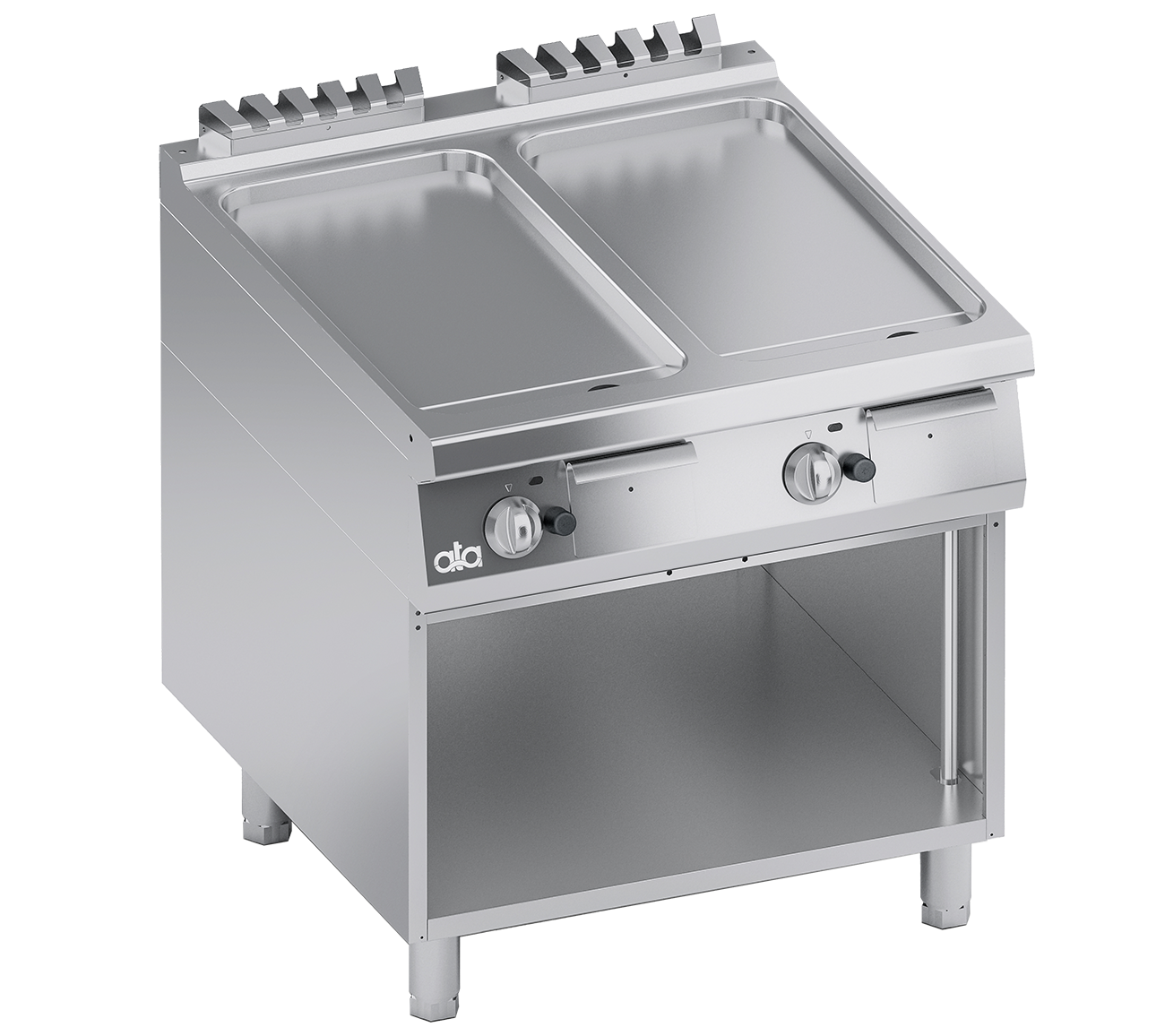

GAS LOW-BUILT GRIDDLE PLATE 1 MODULE SMOOTH PLATE + OPEN CABINET - PERFORMANCE LINE

PRODUCT DESCRIPTION


Stainless steel frame. Athermic thermoset plastic knobs with useful screen printed edges.

Quick temperature rise and heat retention achieved by 2-branch burners with optimized combustion, suitable for working at high temperatures, with thermostatically controlled 8-position thermocouple safety valve and pilot flame. Temperature regulation between 150°C and 315°C. Safety ensured by a thermocouple kept active by the pilot burner flame.

Large-size low-built cooking plate made of special stainless steel and processed with a smooth finish that allows excellent heat transmission and mirror polished finishing to ensure non-stick food and quick cleaning in compliance with current regulations.

Two completely separate cooking plates to allow for two different cooking processes at different temperatures. Smooth cooking plate.

Sloping worktop facing the fat drain hole. Large hole on the cooking surface for draining fats into a provided container with a capacity of 1.3 liters below the cooking surface itself.

Moulded AISI 304 stainless steel worktop with rounded edges for easy cleaning. Stainless steel front, side and back panels.

A Teflon plug, suitable to plug the drain in case of any cooking with a film of oil, available on demand.

Laser-cut work top finishing for "head-to-head" matching and binding fastening.

Tested with natural gas or LPG, according to the user's needs.

Height-adjustable stainless steel legs.

Accessories available on demand

TECHNICAL SPECIFICATIONS


Width: 800 mm
Depth: 900 mm
Height: 850 mm
Weight: 104 kg
Volume: 0.99 m³
Gas power: 18.00 kW
  • Image
    K00089
    CONNECTING KIT
  • Image
    K26019
    SCRAPER FOR GRIDDLE PLATES
  • Image
    K26450
    TEFLON PLUG FOR LOW-BUILTGRIDDLE PLATES
  • Image
    K7PORTA
    DOOR
  • Image
    K9LMLS
    10 BLADES FOR SMOOTH SCRAPER
  • Image
    NEOFOUR
    LIQUID DETERGENT FOR OVENS ANDGRIDDLE PLATES 12 PCS
  • Image
    K00089
    CONNECTING KIT
