K7GFB10TTR

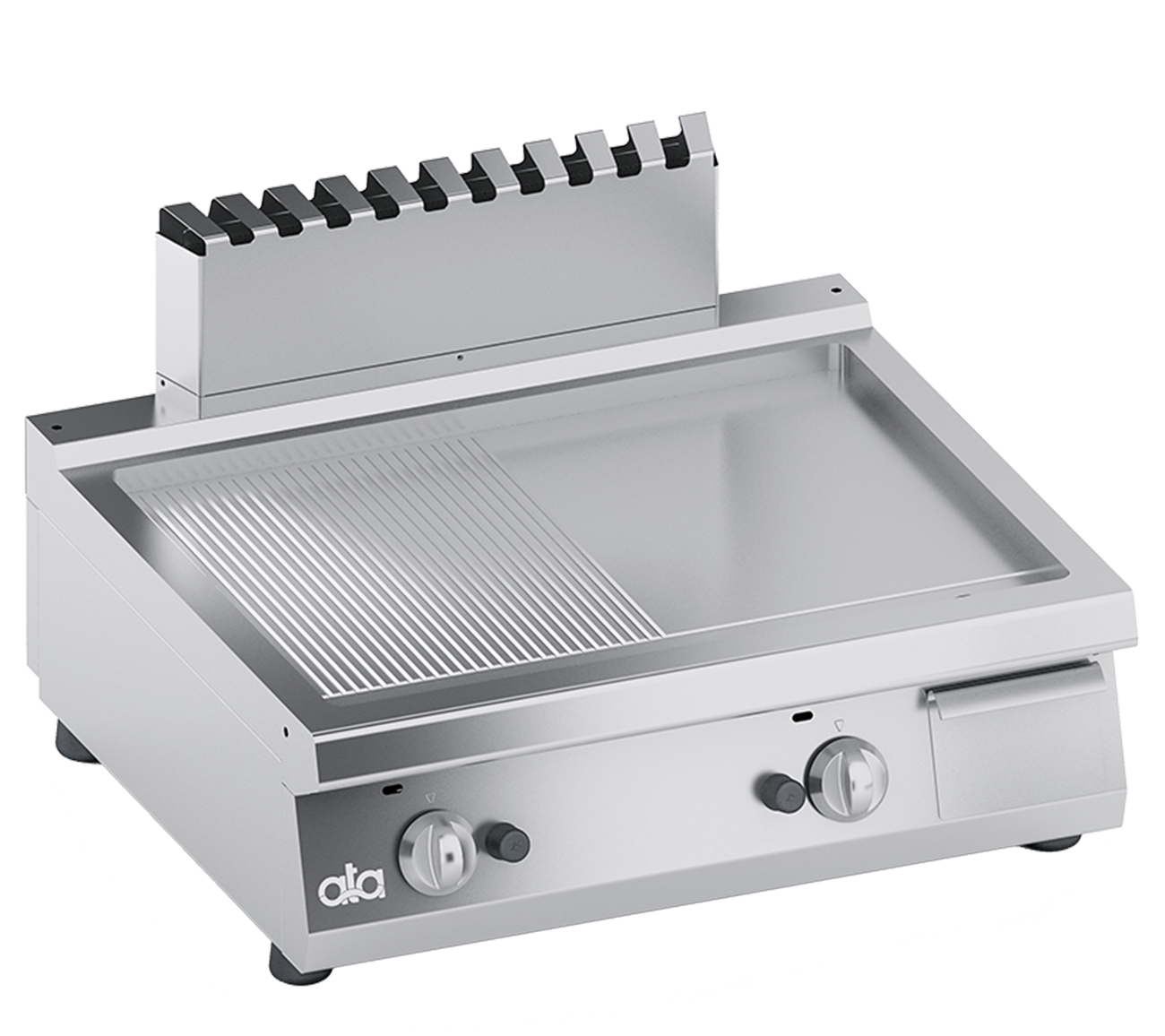

GAS LOW-BUILT GRIDDLE PLATE 1/2 SMOOTH 1/2 GROOVED STEEL TOP - PERFORMANCE LINE

PRODUCT DESCRIPTION


Stainless steel frame. Athermic thermoset plastic knobs with useful screen printed edges.

Quick temperature rise and heat retention achieved by 2-branch burners with optimized combustion, suitable for working at high temperatures, with thermostatically controlled 8-position thermocouple safety valve and pilot flame. Temperature regulation between 150°C and 315°C. Safety ensured by a thermocouple kept active by the pilot burner flame.

Single large-size low-built cooking plate made of special stainless steel  that allows excellent heat transmission and mirror polished finishing to ensure non-stick food and quick cleaning in compliance with current regulations.

Two different cooking areas, each provided with its temperature controls. 1/2 smooth 1/2 grooved cooking plate.

Sloping worktop facing the fat drain hole. Large hole on the cooking surface for draining fats into a provided container with a capacity of 1.3 liters below the cooking surface itself.

Moulded AISI 304 stainless steel worktop with rounded edges for easy cleaning. Stainless steel front, side and back panels.

A Teflon plug, suitable to plug the drain in case of any cooking with a film of oil, available on demand.

Laser-cut work top finishing for "head-to-head" matching and binding fastening.

Tested with natural gas or LPG, according to the user's needs.

Accessories available on demand

TECHNICAL SPECIFICATIONS


Width: 800 mm
Depth: 700 mm
Height: 265 mm
Weight: 61 kg
Volume: 0.38 m³
Gas power: 13.80 kW
  • Image
    C2LMRG
    KIT 10 BLADES FOR SCRAPER
  • Image
    K00088
    CONNECTING KIT S700/S600
  • Image
    K26019
    SCRAPER FOR GRIDDLE PLATES
  • Image
    K26450
    TEFLON PLUG FOR LOW-BUILTGRIDDLE PLATES
  • Image
    NEOFOUR
    LIQUID DETERGENT FOR OVENS ANDGRIDDLE PLATES 12 PCS
