K4GFGP0522N

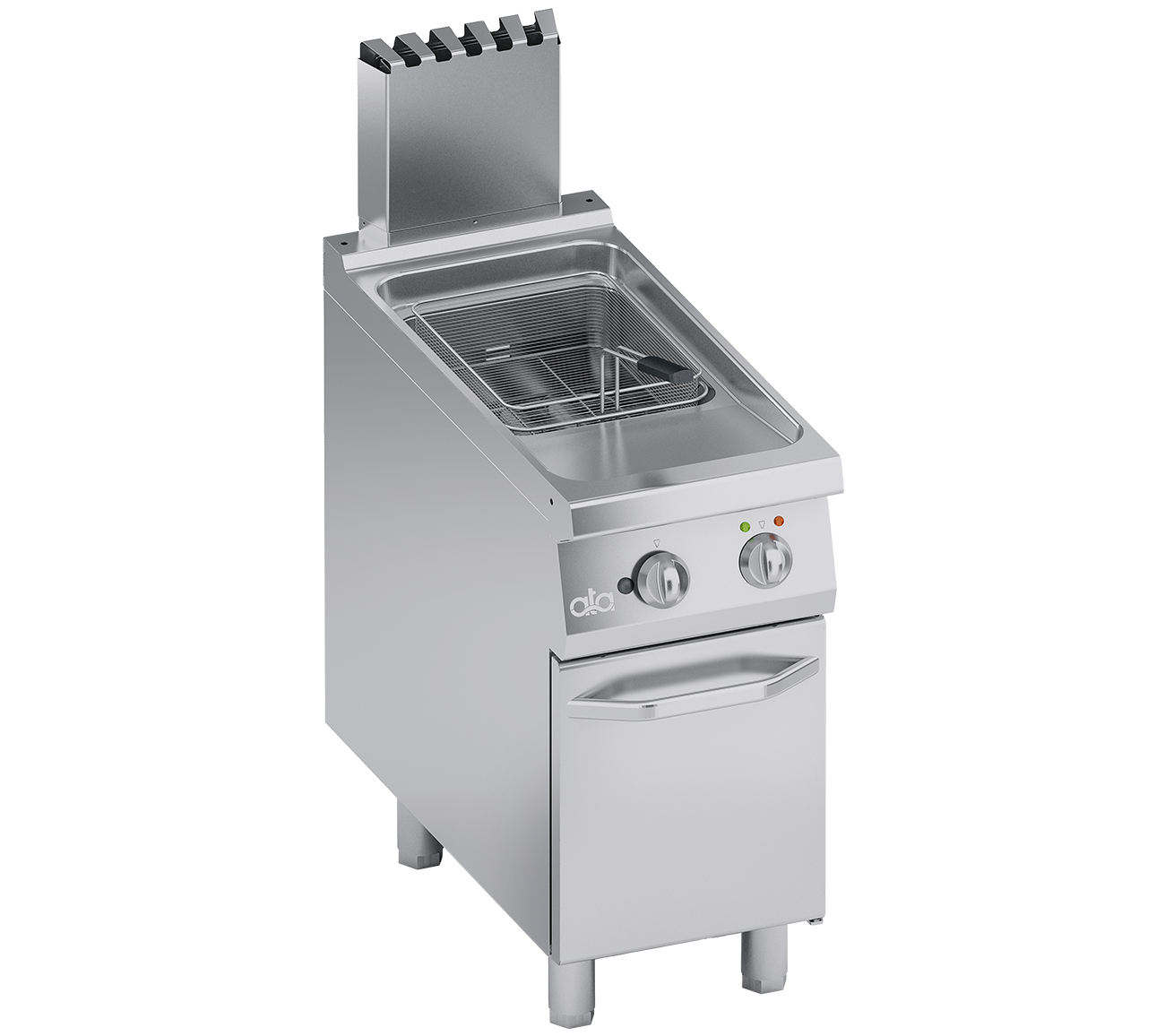

GAS FRYER SINGLE TANK 22 LT. - PERFORMANCE LINE

PRODUCT DESCRIPTION


Stainless steel frame. Athermic thermoset plastic knobs with useful screen printed edges.

Oil heating achieved through optimized combustion stainless steel burners equipped with a heat exchanger in the tank. Powerful and quick intervention of the heating elements to prevent the temperature from dropping when the product is poured into the tank.

One tanka of 22 liters, equipped with electromechanical valve for gas control and electric working thermostat with regulation between 90°C and 190°C. Safety guaranteed by a thermocouple kept active by the pilot burner flame. Additional safety thermostat.

Stainless steel tank with rounded edges sloping towards the drain hole connected to a stainless steel container to collect the oil.

Oil drains from the tank via a tap into an internal collection container with a filter.

Standard provided with one steel basket coated with a layer of protective material K26500 and stainless steel basin cover K4COPFGP.

Standard provided with one stainless steel oil container with filter.

Moulded AISI 304 stainless steel worktop for easy cleaning. Front panel in AISI 304 stainless steel. Cold-formed stainless steel tank.

Laser-cut work top finishing for "head-to-head" matching and binding fastening.

Tested with natural gas or LPG, according to the user's needs.

Height-adjustable stainless steel legs.

Accessories available on demand

TECHNICAL SPECIFICATIONS


Width: 400 mm
Depth: 900 mm
Height: 850 mm
Weight: 63 kg
Volume: 0.56 m³
Electrical power: 0.01 kW
Gas power: 21.00 kW
  • Image
    ARGFRY
    DETERGENT TABLETS FOR FRYERS6 PCS
  • Image
    K00089
    CONNECTING KIT
  • Image
    K26500
    FRYER BASKET 1/1
  • Image
    K26509
    FRYER BASKET 1/2
  • Image
    K4COPFGP
    FRYER LID SERIES K4 PERFORMANCE
  • Image
    K4VOFG
    STAILESS STEEL OIL CONTAINER +FILTER
  • Image
    K00089
    CONNECTING KIT
