K4GFEP1022N

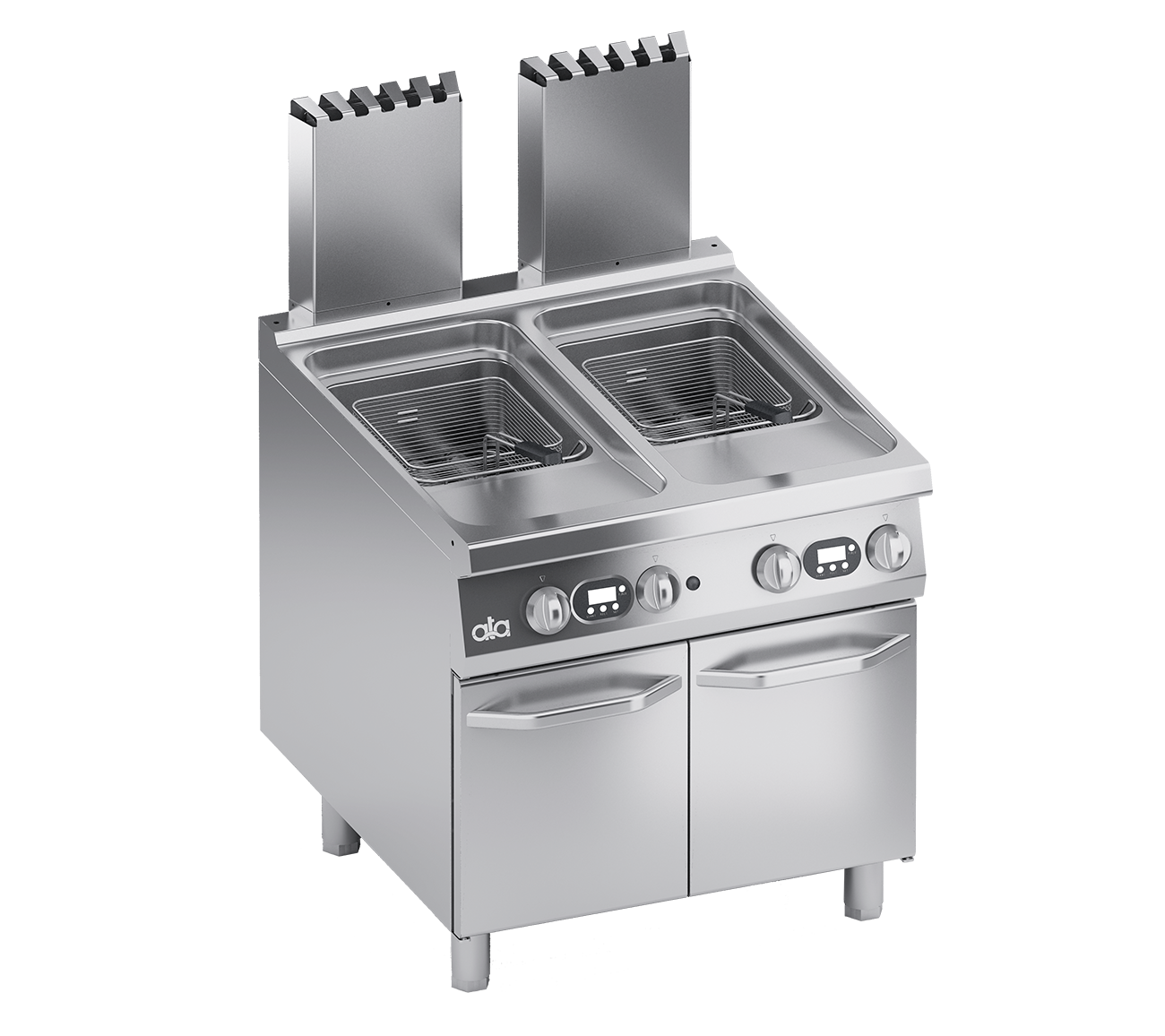

GAS FRYER DOUBLE TANK 22+22 LT. WITH ELECTRONIC CONTROLS - PERFORMANCE LINE

PRODUCT DESCRIPTION


Stainless steel frame. Athermic thermoset plastic knobs with useful screen printed edges.

Oil heating achieved through optimized combustion stainless steel burners equipped with a heat exchanger in the tank. Powerful and quick intervention of the heating elements to prevent the temperature from dropping when the product is poured into the tank.

Two tanks of 22 liters each, equipped with a safety gas valve controlled by an electronic card with a class J thermocouple, which allows temperature regulation up to 190°C. Safety guaranteed by a thermocouple kept active by the pilot burner flame. Indication on the display of the intervention of the safety thermostat. The melting cycle ensures electronic control of the oil heating at programmed intervals both during the oil heating phase (when using a solid fat) and during the temperature maintenance phase. Software that guarantees that the set temperature is reached exactly, avoiding thermal stress to the oil and its oxidation. Display showing the temperature of the oil in the tank in real time. Timer function to alert the user with a buzzer when the pre-set cooking time is reached.

Stainless steel tanks with rounded edges sloping towards the drain hole connected to a stainless steel container to collect the oil.

Oil drains from the tank via a tap into an internal collection container with a filter.

Standard provided with two steel baskets coated with a layer of protective material K26500 and two stainless steel basin covers K4COPFGP.

Standard provided with one stainless steel oil container with filter.

Moulded AISI 304 stainless steel worktop for easy cleaning. Front cover in AISI 304 stainless steel. Cold-formed stainless steel tanks.

Laser-cut work top finishing for "head-to-head" matching and binding fastening.

Tested with natural gas or LPG, according to the user's needs.

Height-adjustable stainless steel legs.

Accessories available on demand

TECHNICAL SPECIFICATIONS


Width: 800 mm
Depth: 900 mm
Height: 850 mm
Weight: 107 kg
Volume: 0.99 m³
Gas power: 42.00 kW
  • Image
    ARGFRY
    DETERGENT TABLETS FOR FRYERS6 PCS
  • Image
    K00089
    CONNECTING KIT
  • Image
    K26500
    FRYER BASKET 1/1
  • Image
    K26509
    FRYER BASKET 1/2
  • Image
    K4COPFGP
    FRYER LID SERIES K4 PERFORMANCE
  • Image
    K4VOFG
    STAILESS STEEL OIL CONTAINER +FILTER
  • Image
    K00089
    CONNECTING KIT
