K7ECU10VVQ

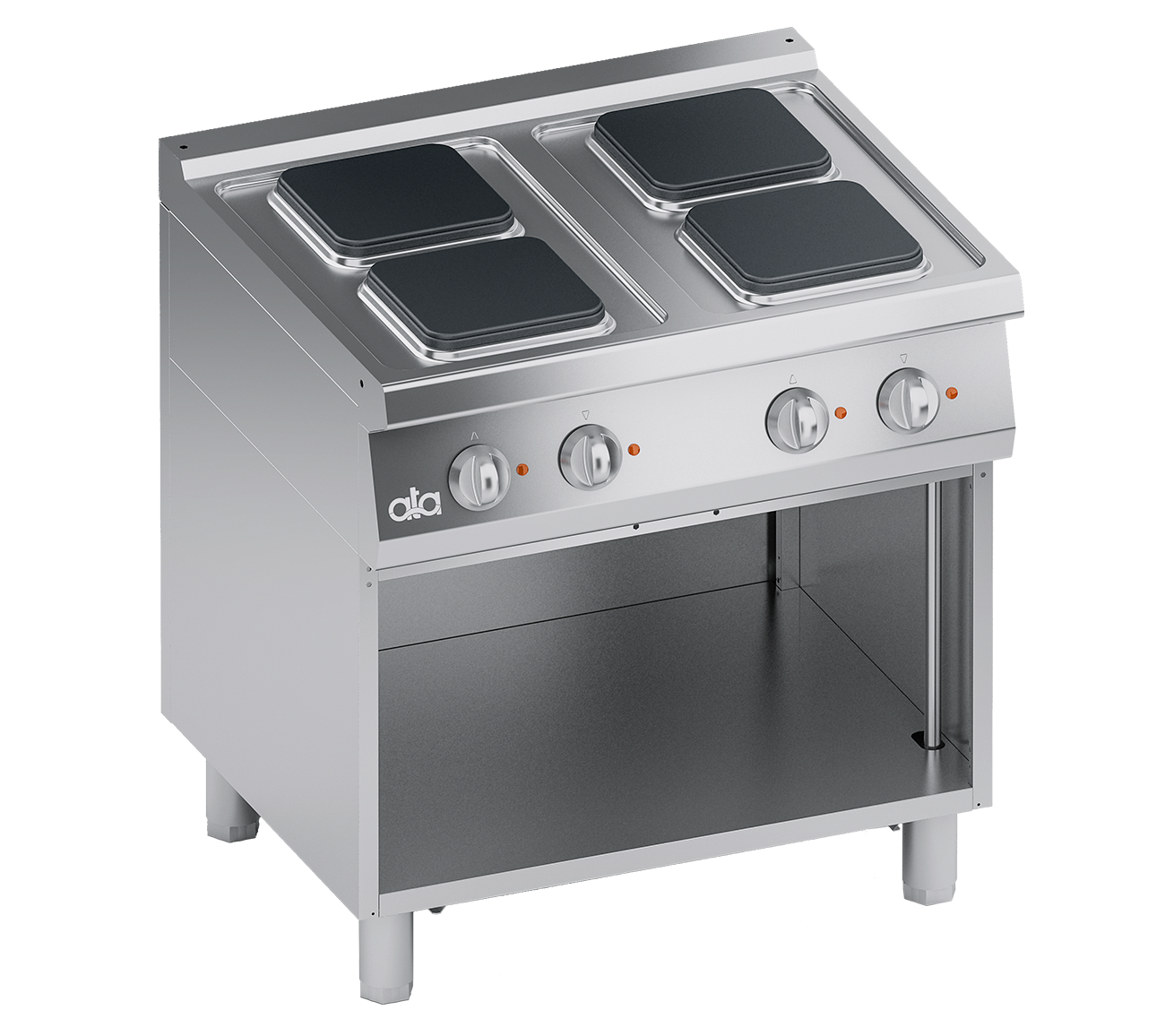

ELECTRIC RANGE 4 SQUARE PLATES + OPEN CABINET

PRODUCT DESCRIPTION


Stainless steel frame. Athermic thermoset plastic knobs with useful screen printed edges.

Heating obtained through cast iron square electric plates. Heating elements fixed on the plate bottom, embedded in a layer of insulating material. Each hotplate is provided with a selector, which enables the variation of the heat output from maximum to minimum in seven positions. Safety ensured by a temperature limit-switch situated inside the hotplate.

AISI 304 moulded work surface presenting a reverse drawing for perfect lodging the electric plates, easy cleaning and avoiding liquid damaging electric parts. Stainless steel AISI 304 front panel.

Laser-cut work top finishing for "head-to-head" matching and binding fastening.

Height-adjustable stainless steel legs.

Accessories available on demand

TECHNICAL SPECIFICATIONS


Width: 800 mm
Depth: 700 mm
Height: 850 mm
Weight: 59 kg
Volume: 0.38 m³
Electrical power: 10.40 kW
  • Image
    K00088
    CONNECTING KIT S700/S600
  • Image
    K7AFP
    BUILT-IN POT HOLDER FOR ELECT.RANGES
  • Image
    K7PORTA
    DOOR
