K4ECUP10FF

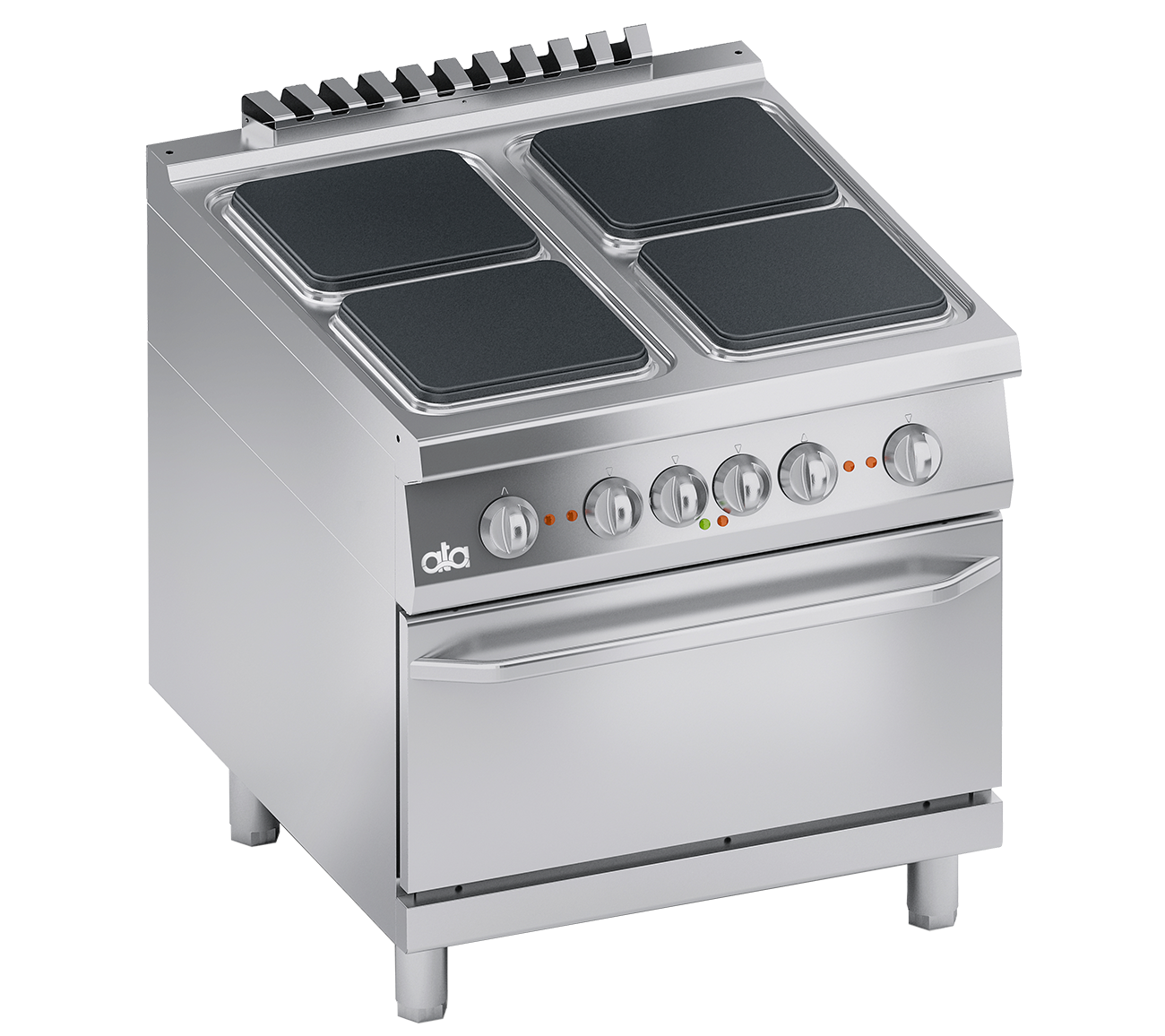

ELECTRIC RANGE 4 PLATES + ELECTRIC OVEN 2/1 GN

PRODUCT DESCRIPTION


Stainless steel frame. Athermic thermoset plastic knobs with useful screen printed edges. Double-skinned moulded oven door and AISI 304 elliptical cross-section designed handle.

Heating obtained through cast iron square electric plates. Heating elements fixed on the plate bottom, embedded in a layer of insulating material. Each hotplate is provided with a selector, which enables the variation of the heat output from maximum to minimum in seven positions. Safety ensured by a temperature limit-switch situated inside the hotplate.

AISI 304 moulded 2 mm-thick work surface presenting a reverse drawing for perfect lodging the electric plates, easy cleaning and avoiding liquid damaging electric parts. Stainless steel AISI 304 front panel.

Electric static oven 2/1 GN suitable for 2/1 GN trays. Stainless steel AISI 430 oven cooking chamber and thick stainless steel oven floor. Stainless steel removable oven grill.

Insulation of the cooking chamber and of the oven door ensured by a layer of high temperature resistant ceramic fibre.

Heating obtained through heating elements placed under the bottom and on the top of the cooking chamber. Equipped with a thermostat that adjusts the temperature between 90°C and 300°C. Possibility to select different types of heating: from below only, from above only or both from below and above through a selector.

Laser-cut work top finishing for "head-to-head" matching and binding fastening.

Height-adjustable stainless steel legs.

Accessories available on demand

TECHNICAL SPECIFICATIONS


Width: 800 mm
Depth: 900 mm
Height: 850 mm
Weight: 160 kg
Volume: 0.99 m³
Electrical power: 21.40 kW
  • Image
    K00088
    CONNECTING KIT S700/S600
  • Image
    K26245
    OVEN GRID
  • Image
    K7A25019
    BUILT-IN CAST IRON FLOOR FOR2/1GN OVENS
