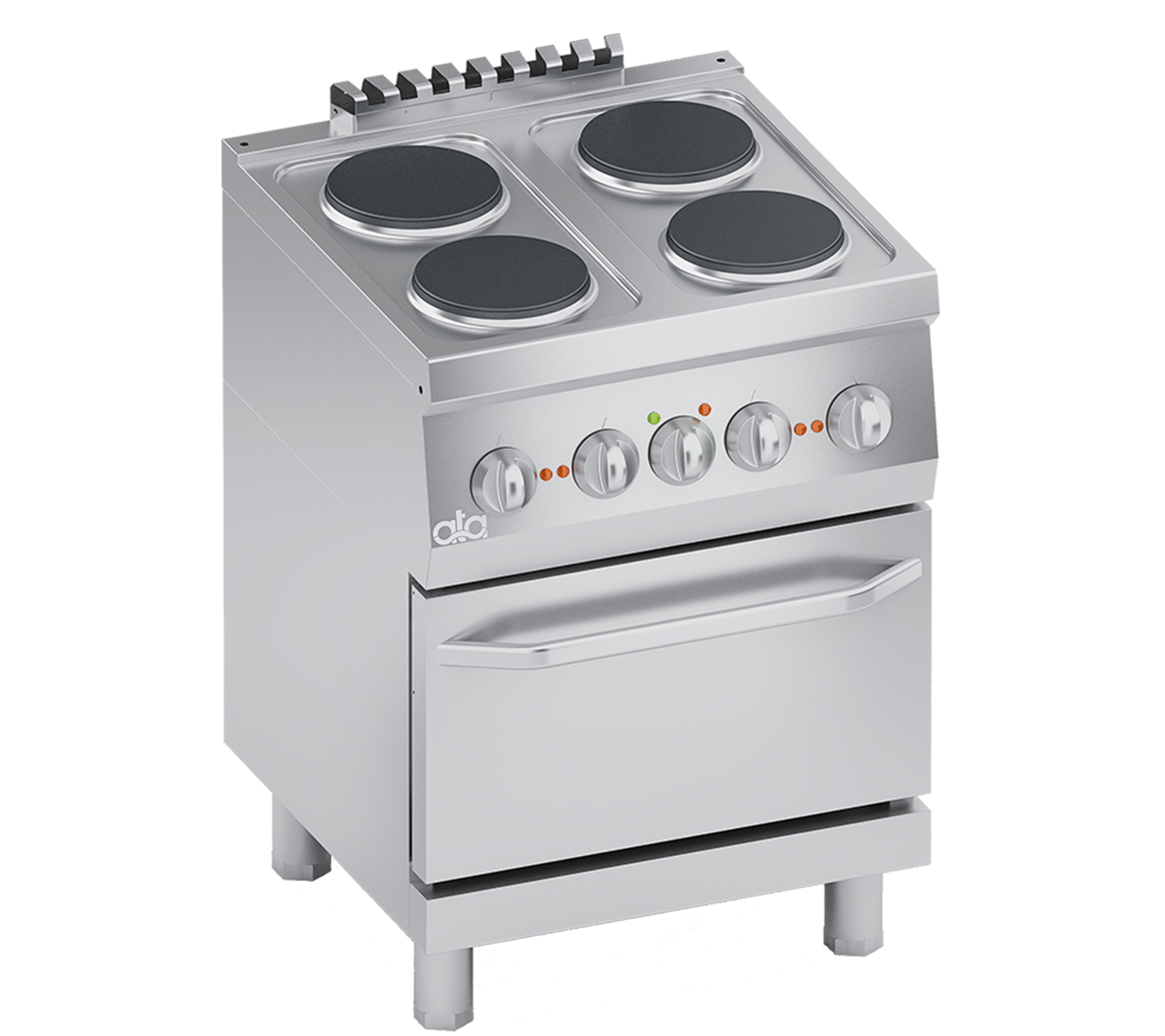

K6ECU10FF
ELECTRIC RANGE 4 PLATES + ELECTRIC OVEN 1/1 GN
PRODUCT DESCRIPTION
Stainless steel frame. Athermic thermoset plastic knobs with useful screen printed edges. Double-skinned moulded oven door and AISI 304 elliptical cross-section designed handle.
Heating obtained through cast iron round electric plates. Heating elements fixed on the plate bottom, embedded in a layer of insulating material. Each hotplate is provided with a selector, which enables the variation of the heat output from maximum to minimum in seven positions. Safety ensured by a temperature limit-switch situated inside the hotplate.
AISI 304 moulded work surface presenting a reverse drawing for perfect lodging the electric plates, easy cleaning and avoiding liquid damaging electric parts. Stainless steel AISI 304 front panel.
Electric static oven 1/1 GN. Stainless steel AISI 430 oven cooking chamber and thick stainless steel oven floor. Stainless steel removable oven grill.
Insulation of the cooking chamber and of the oven door ensured by a layer of high temperature resistant ceramic fibre.
Heating obtained through heating elements placed under the bottom and on the top of the cooking chamber. Equipped with a thermostat that adjusts the temperature between 90°C and 300°C. Possibility to select different types of heating: from below only, from above only or both from below and above through a selector.
Laser-cut work top finishing for "head-to-head" matching and binding fastening.
Height-adjustable stainless steel legs.
Accessories available on demand.
TECHNICAL SPECIFICATIONS
Depth: 600 mm
Height: 850 mm
Volume: 0.53 m³
Electrical power: 11.00 kW
