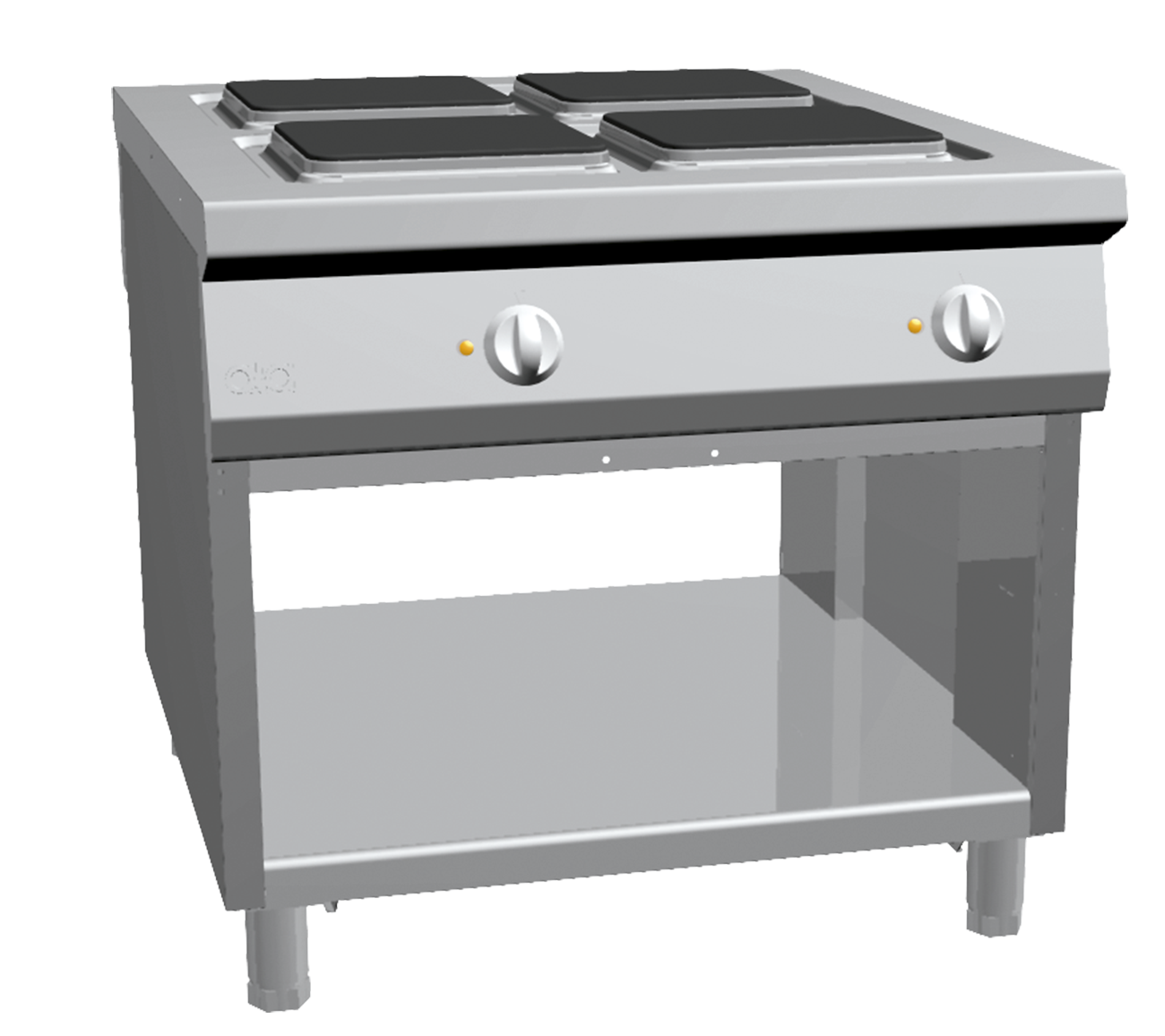

K1ECU10VV
ELECTRIC PASS-THROUGH RANGE 4 PLATES + OPEN CABINET
PRODUCT DESCRIPTION
Stainless steel frame. Athermic thermoset plastic knobs.
Heating obtained through cast iron square electric plates. Heating elements fixed on the plate bottom, embedded in a layer of insulating material.
Each hotplate provided with as pressure switch, which enables the variation of the heat output from maximum to minimum in seven positions. Safety ensured by a temperature limit-switch situated inside the hotplate.
Moulded work surface presenting a reverse drawing for perfect lodging the electric plates, easy cleaning and avoiding liquid damaging electric parts.
Height-adjustable stainless steel legs.
Accessories available on demand.
TECHNICAL SPECIFICATIONS
Width: 1100 mm
Depth: 900 mm
Height: 850 mm
Depth: 900 mm
Height: 850 mm
Weight: 115 kg
Volume: 1.31 m³
Electrical power: 16.00 kW
Volume: 1.31 m³
Electrical power: 16.00 kW
-
