C2EFR10TT

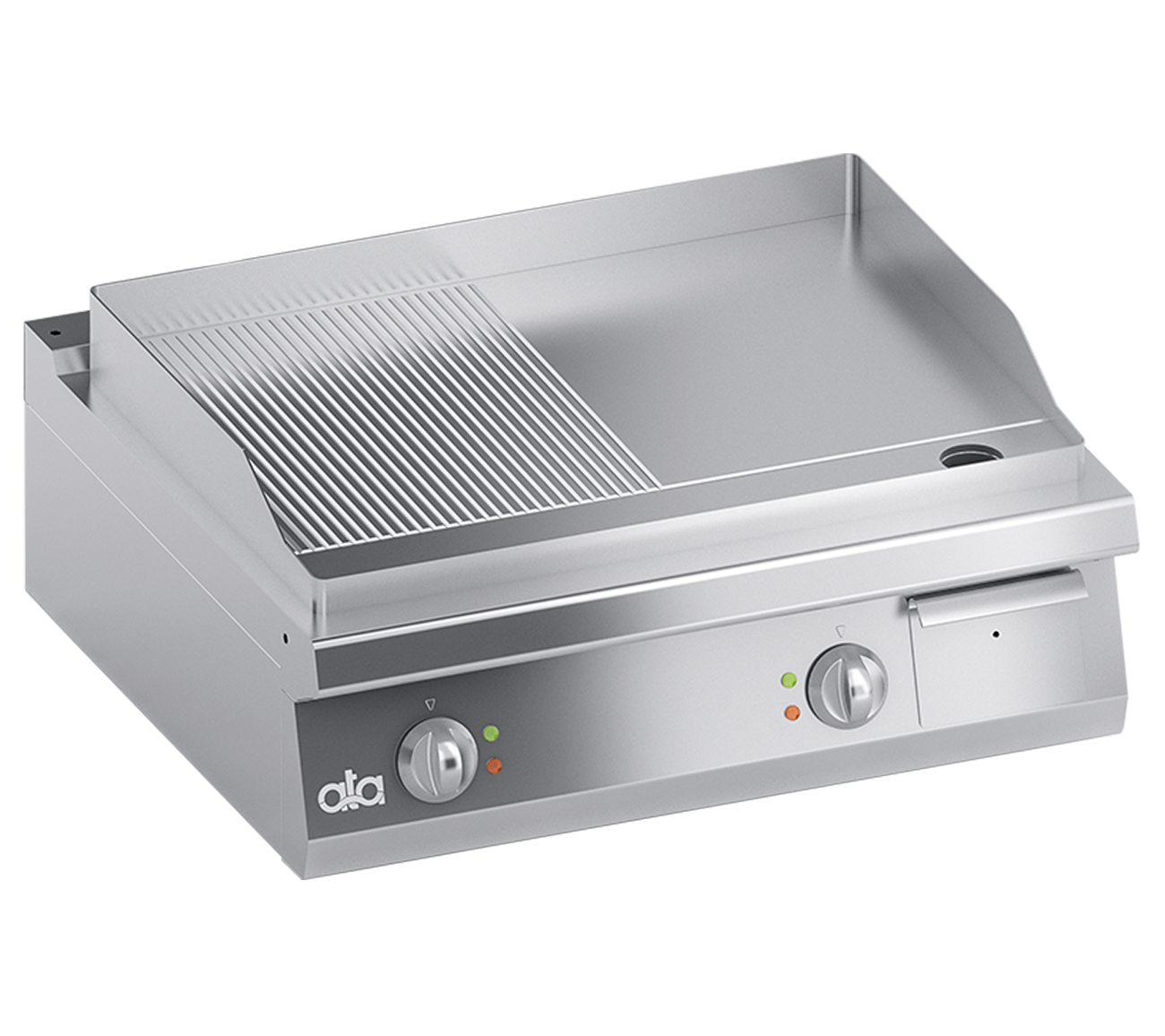

ELECTRIC GRIDDLE PLATE 1/2 SMOOTH 1/2 GROOVED TOP - SOLUTION LINE

PRODUCT DESCRIPTION


Stainless steel frame. Athermic thermoset plastic knobs with useful screen printed edges.

Heating obtained through tubular heating elements with stainless steel sheath placed in direct contact with the cooking plate. Temperature regulation through a thermostat. Working temperatures between 90°C and 300°C. Safety thermostat with manual reset against equipment malfunctioning.

Single large, thick cooking plate with smooth finish that allows excellent heat transmission. Welded splash guard. The groove geometry of the grooved cooking plates is such as it can be cleaned with the smooth scraper used for cutting. The cooking plate is installed on the worktop with a slight inclination to allow grease to flow towards the drain.

Two different cooking areas, each provided with its temperature controls. 1/2 smooth 1/2 grooved cooking plate.

AISI 304 stainless steel worktop with rounded corners for easy cleaning. Stainless steel front, side and back panels.

Large hole on the cooking surface for draining fats into a large capacity container placed under the cooking surface itself. Standard equipped with a grease collection container.

A Teflon plug, suitable to plug the drain in case of any cooking with a film of oil, available on demand.

Laser-cut work top finishing for "head-to-head" matching and binding fastening.

Accessories available on demand

TECHNICAL SPECIFICATIONS


Width: 800 mm
Depth: 700 mm
Height: 265 mm
Weight: 49 kg
Volume: 0.38 m³
Electrical power: 8.20 kW
  • Image
    C2LMRG
    KIT 10 BLADES FOR SCRAPER
  • Image
    K00088
    CONNECTING KIT S700/S600
  • Image
    K26019
    SCRAPER FOR GRIDDLE PLATES
  • Image
    K26450
    TEFLON PLUG FOR LOW-BUILTGRIDDLE PLATES
  • Image
    NEOFOUR
    LIQUID DETERGENT FOR OVENS ANDGRIDDLE PLATES 12 PCS
